It is the base interface for all Local Devices. More...

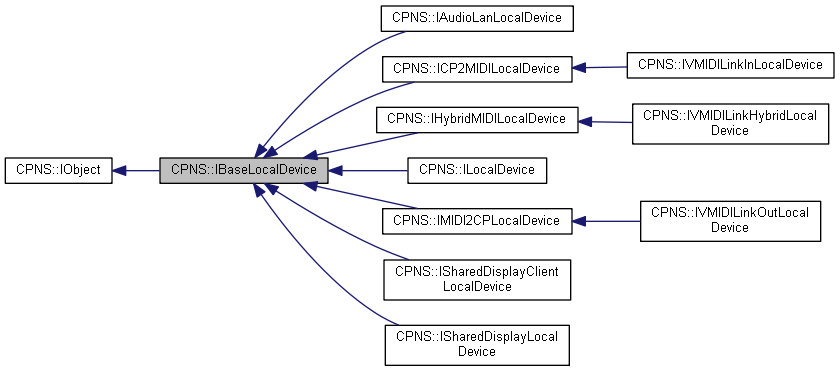

Inheritance diagram for CPNS::IBaseLocalDevice:

Collaboration diagram for CPNS::IBaseLocalDevice:

Public Member Functions
virtual CPNS::ILocalDevice *	GetILocalDevice () const =0
	Check LocalDevice type and return an ILocalDevice object pointer if type match. More...

virtual CPNS::IMIDI2CPLocalDevice *	GetIMIDI2CPLocalDevice () const =0
	Check LocalDevice type and return an IMIDI2CPLocalDevice object pointer if type match. More...

virtual CPNS::ICP2MIDILocalDevice *	GetICP2MIDILocalDevice () const =0
	Check LocalDevice type and return an ICP2MIDILocalDevice object pointer if type match. More...

virtual CPNS::IHybridMIDILocalDevice *	GetIHybridMIDILocalDevice () const =0
	Check LocalDevice type and return an IHybridMIDILocalDevice object pointer if type match. More...

virtual CPNS::IVMIDILinkInLocalDevice *	GetIVMIDILinkInLocalDevice () const =0
	Check LocalDevice type and return an IInVMIDILinkLocalDevice object pointer if type match. More...

virtual CPNS::IVMIDILinkOutLocalDevice *	GetIVMIDILinkOutLocalDevice () const =0
	Check LocalDevice type and return an IOutVMIDILinkLocalDevice object pointer if type match. More...

virtual CPNS::IVMIDILinkHybridLocalDevice *	GetIVMIDILinkHybridLocalDevice () const =0
	Check LocalDevice type and return an IHybridVMIDILinkLocalDevice object pointer if type match. More...

virtual CPNS::ISharedDisplayLocalDevice *	GetISharedDisplayLocalDevice () const =0
	Check LocalDevice type and return an ISharedDisplayLocalDevice object pointer if type match. More...

virtual CPNS::ISharedDisplayClientLocalDevice *	GetISharedDisplayClientLocalDevice () const =0
	Check LocalDevice type and return an ISharedDisplayClientLocalDevice object pointer if type match. More...

virtual CPNS::IAudioLanLocalDevice *	GetIAudioLanLocalDevice () const =0
	Check LocalDevice type and return an IAudioLanLocalDevice object pointer if type match. More...

virtual void	SetDisabledDestinationAutoDelete (CPNS::boolean const fAutoDelete)=0
	Enable/disable the automatic deletion of disabled destination after 60 seconds. More...

virtual void	SetDisabledInternalSnapshot (CPNS::boolean const fDisabled, CPNS::boolean const fAlsoForChildren)=0
	Enable/disable the internal snapshot capability for this device and optionally its descendants By default it is enabled for device hosting outputs, for outputs hosting controllers, and for inputs hosting parameters. More...

virtual void	SetSectionName (CPNS::SectionID const &sectionID, CPNS::char8 const *const utf8Name)=0
	Set a custom name for the specified section. More...

virtual CPNS::UTF8String	GetSectionName (CPNS::SectionID const &sectionID)=0
	Get the custom name for the specified section type. More...

virtual void	FlowControl (CPNS::boolean const fSuspend)=0
	This can be used to notify connected Output that they should suspend or resume sending. More...

virtual CPNS::ILocalDevice *	AddSubLocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::IMIDI2CPLocalDevice *	AddSubMIDI2CPLocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic MIDI to CopperLan sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::ICP2MIDILocalDevice *	AddSubCP2MIDILocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic CopperLan to MIDI sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::IHybridMIDILocalDevice *	AddSubHybridMIDILocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic hybrid MIDI sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::IVMIDILinkOutLocalDevice *	AddSubVMIDILinkOutLocalDevice (CPNS::uint16 const wModuleID, CPNS::char8 const *const utf8PortName)=0
	Add a VMIDILink Out sub-device. More...

virtual CPNS::IVMIDILinkInLocalDevice *	AddSubVMIDILinkInLocalDevice (CPNS::uint16 const wModuleID, CPNS::char8 const *const utf8PortName)=0
	Add a VMIDILink In sub-device This kind of Local Device is acting as a local input port, aimed to receive messages from a MIDI Out port automatically created on remote computers. More...

virtual CPNS::IVMIDILinkHybridLocalDevice *	AddSubVMIDILinkHybridLocalDevice (CPNS::uint16 const wModuleID, CPNS::char8 const *const utf8PortName)=0
	Add a VMIDILink Hybrid sub-device This kind of Local Device is acting as a local input/output port, aimed to receive and send messages from/to a pair of MIDI Out/In ports automatically created on remote computers. More...

virtual CPNS::ISharedDisplayLocalDevice *	AddSubSharedDisplayLocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic shared display server sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::ISharedDisplayClientLocalDevice *	AddSubSharedDisplayClientLocalDevice (CPNS::uint16 const wModuleID, CPNS::boolean const fHidden, CPNS::CombinedExtendedDeviceCapabilities const extDevCaps, CPNS::char8 const *const utf8ModelName)=0
	Add a generic shared display client sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. More...

virtual CPNS::IBaseLocalDevice *	GetFirstSubDevice ()=0
	Get the first sub-device. More...

virtual CPNS::IBaseLocalDevice *	GetNextDevice ()=0
	Get next sibling device. More...

virtual CPNS::IBaseLocalDevice *	GetParentDevice ()=0
	Get parent device. More...

virtual CPNS::CombinedDeviceCapabilities	GetDeviceCapabilities ()=0
	Get the consolidated capabilities of the device and its children. More...

virtual CPNS::CombinedInOutCapabilities	GetOutputCapabilities ()=0
	Get the consolidated Output capabilities of the device and its children. More...

virtual CPNS::CombinedInOutCapabilities	GetInputCapabilities ()=0
	Get the consolidated Input capabilities of the device and its children. More...

virtual CPNS::CombinedDeviceCapabilities	GetOwnDeviceCapabilities ()=0
	Get the device capabilities. More...

virtual CPNS::CombinedInOutCapabilities	GetOwnOutputCapabilities ()=0
	Get the Output capabilities. More...

virtual CPNS::CombinedInOutCapabilities	GetOwnInputCapabilities ()=0
	Get the Input capabilities. More...

virtual CPNS::CombinedExtendedDeviceCapabilities	GetExtendedDeviceCapabilities ()=0
	Get the extended device capabilities. More...

virtual void	RegisterNotificationHandler (CPNS::IBaseLocalDevice_NotificationHandler *const pHandler)=0
	Register a Local Device notification handler. More...

virtual void	UnregisterNotificationHandler (CPNS::IBaseLocalDevice_NotificationHandler *const pHandler)=0
	Unregister a Local Device notification handler. More...

virtual void	SetSnapshotNotificationHandler (CPNS::IBaseLocalDevice_SnapshotNotificationHandler *const pHandler)=0
	Set a Local Device Snapshot notification handler. More...

virtual void	SetSmartConnectTargetNotificationHandler (CPNS::IBaseLocalDevice_SmartConnectTargetNotificationHandler *const pHandler)=0
	Set a Local Device notification handler for Smart Connect, Target side. More...

virtual CPNS::DeviceID	GetDeviceID () const =0
	Get the DeviceID. More...

virtual CPNS::Enums::Errors	SetExtendeddDevCaps (CPNS::CombinedExtendedDeviceCapabilities const xDevCaps)=0
	Set the device's extended caps. More...

virtual CPNS::CombinedExtendedDeviceCapabilities	GetExtendedDevCaps () const =0
	Get the extended caps. More...

virtual CPNS::DeviceID	GetParentDeviceID () const =0
	Get the parent DeviceID. More...

virtual CPNS::boolean	IsChildOf (CPNS::IBaseLocalDevice *const pCheckDev)=0
	Check if the local device is or is child of another one. More...

virtual CPNS::UTF8String	GetBrandName ()=0
	Get the Brand name. More...

virtual CPNS::UTF8String	GetModelName ()=0
	Get the Model name. More...

virtual CPNS::Enums::Errors	SetCustomName (CPNS::char8 const *const utf8CustomName)=0
	Set the Custom name If not empty, the custom name override the default name. More...

virtual CPNS::UTF8String	GetCustomName ()=0
	Get the Custom name. More...

virtual CPNS::UTF8String	GetName (CPNS::Enums::DeviceNameFormats const format)=0
	Get the specified name. More...

virtual CPNS::UTF8String	GetPath ()=0
	Get the path. More...

virtual CPNS::Enums::DuplicateModes	GetDuplicateMode () const =0
	Get the duplicate mode. More...

virtual CPNS::Enums::Errors	SetVisibility (CPNS::boolean const fHidden)=0
	Change device visibility. More...

virtual CPNS::Enums::Errors	SetStringProperty (CPNS::uint16 const wPropertyNum, CPNS::char8 const *const utf8Value)=0
	Set a text device property. More...

virtual CPNS::Enums::Errors	SetNumericProperty (CPNS::uint16 const wPropertyNum, CPNS::uint64 const qwValue)=0
	Set a numeric device property. More...

virtual CPNS::Enums::Errors	GetStringProperty (CPNS::uint16 const wPropertyNum, CPNS::UTF8String &strValue)=0

virtual CPNS::Enums::Errors	GetNumericProperty (CPNS::uint16 const wPropertyNum, CPNS::uint64 &qwValue)=0

virtual CPNS::IOutput *	AddOutput (CPNS::CombinedInOutCapabilities const outCaps, CPNS::char8 const *const utf8Name, CPNS::SectionID const &sectionID)=0
	Add an Output. More...

virtual void	ClearOutputs ()=0
	Remove all outputs and associated data (controller definition) More...

virtual CPNS::uint16	GetNumOutputs ()=0
	Get the number of Outputs. More...

virtual CPNS::IOutput *	FindFirstOutput ()=0
	Get the first Output. More...

virtual CPNS::IOutput *	FindLastOutput ()=0
	Get the last Output. More...

virtual CPNS::IOutput *	FindPrevOutput (CPNS::uint16 const wOutputID)=0
	Get the prev Output. More...

virtual CPNS::IOutput *	FindNextOutput (CPNS::uint16 const wOutputID)=0
	Get the next Output. More...

virtual CPNS::IOutput *	GetOutputFromID (CPNS::uint16 const wOutputID)=0
	Get the specified Output. More...

virtual CPNS::Enums::Errors	Flush ()=0
	Flush all outputs. More...

virtual CPNS::IInput *	AddInput (CPNS::CombinedInOutCapabilities const inCaps, CPNS::char8 const *const utf8Name, CPNS::SectionID const &sectionID)=0
	Add an Input. More...

virtual void	ClearInputs ()=0
	Remove all inputs and associated data (parameter definition) More...

virtual CPNS::uint16	GetNumInputs ()=0
	Get the number of Inputs. More...

virtual CPNS::IInput *	FindFirstInput ()=0
	Get the first Input. More...

virtual CPNS::IInput *	FindLastInput ()=0
	Get the last Input. More...

virtual CPNS::IInput *	FindPrevInput (CPNS::uint16 const wInputID)=0
	Get the prev Input. More...

virtual CPNS::IInput *	FindNextInput (CPNS::uint16 const wInputID)=0
	Get the next Input. More...

virtual CPNS::IInput *	GetInputFromID (CPNS::uint16 const wInputID)=0
	Get the specified Input. More...

virtual CPNS::IController *	AddController (CPNS::char8 const *const utf8Name, CPNS::CombinedControllerTypes const types, CPNS::Enums::MessageTypes const preferredMsgType, CPNS::uint16 const wPreferredMsgNum, CPNS::uint16 const wGroup, CPNS::SectionID const &sectionID)=0
	Add a controller. More...

virtual void	ClearControllers ()=0
	Remove all controllers. More...

virtual CPNS::uint16	GetNumControllers ()=0
	Get the number of Controller. More...

virtual CPNS::IController *	FindFirstController ()=0
	Get the first Controller. More...

virtual CPNS::IController *	FindLastController ()=0
	Get the last Controller. More...

virtual CPNS::IController *	FindPrevController (CPNS::uint16 const wControllerID)=0
	Get the prev Controller. More...

virtual CPNS::IController *	FindNextController (CPNS::uint16 const wControllerID)=0
	Get the next Controller. More...

virtual CPNS::IController *	GetControllerFromID (CPNS::uint16 const wControllerID)=0
	Get the specified Controller. More...

virtual void	UnassignAllControllers (CPNS::boolean const fAlsoForChildren)=0
	Unassign all controllers and clear connections for all related Outputs. More...

virtual void	LeaveLearningMode ()=0
	Leave learning mode if one of this Device's Controller is currently learning. More...

virtual CPNS::boolean	IsLearningModeActive ()=0
	Check if learning mode is active for one of this Device's Controllers. More...

virtual CPNS::IPipe *	AddPipe (CPNS::boolean const fSynapse)=0
	Add an Pipe. More...

virtual void	ClearPipes ()=0
	Remove all pipes. More...

virtual CPNS::uint16	GetNumPipes ()=0
	Get the number of Pipes. More...

virtual CPNS::IPipe *	FindFirstPipe ()=0
	Get the first Pipe. More...

virtual CPNS::IPipe *	FindNextPipe (CPNS::uint16 const wPipeID)=0
	Get the next Pipe. More...

virtual CPNS::IPipe *	GetPipeFromID (CPNS::uint16 const wPipeID)=0
	Get the specified Pipe. More...

virtual void	RegisterSignalNotificationHandler (CPNS::IBaseLocalDevice_SignalNotificationHandler *const pHandler)=0
	Register a Signal reception notification handler. More...

virtual void	UnregisterSignalNotificationHandler (CPNS::IBaseLocalDevice_SignalNotificationHandler *const pHandler)=0
	Unregister a Signal reception notification handler. More...

virtual CPNS::Enums::Errors	Signal_Direct (CPNS::DeviceID const &devID, CPNS::uint16 const wSignalNumber, CPNS::uint16 const wOptionalData0, CPNS::uint16 const wOptionalData1, CPNS::uint16 const wOptionalData2, CPNS::uint16 const wOptionalData3, CPNS::char8 const *const utf8OptionalData, CPNS::Endpoint const &optionalEndpoint)=0
	Send a directed signal to the specified device. More...

virtual CPNS::Enums::Errors	Signal_Broadcast (CPNS::uint16 const wSignalNumber, CPNS::uint16 const wOptionalData0, CPNS::uint16 const wOptionalData1, CPNS::uint16 const wOptionalData2, CPNS::uint16 const wOptionalData3, CPNS::char8 const *const utf8OptionalData, CPNS::Endpoint const &optionalEndpoint)=0
	Send a broadcast signal to all devices. More...

virtual CPNS::Enums::Errors	SmartConnectTarget_UnassignAndRequestSectionList (CPNS::uint16 const wSessionID, CPNS::DeviceID const &devID)=0
	Query the SmartConnect source side to clear its controller assignments and to reply the consolidated section list. More...

virtual CPNS::Enums::Errors	SmartConnectTarget_RequestControllerList (CPNS::uint16 const wSessionID, CPNS::DeviceID const &devID, CPNS::SectionID const &sectionID)=0
	Query the SmartConnect source side to reply the controller list related to the specified section instance. More...

virtual CPNS::Enums::Errors	SmartConnectTarget_AssignController (CPNS::uint16 const wSessionID, CPNS::DeviceID const &devID, CPNS::uint16 const wControllerID, CPNS::ControllerAssignment const &assignment)=0
	Assign the specified controller to a target parameter. More...

virtual CPNS::Enums::Errors	SmartConnectTarget_AssignOutput (CPNS::uint16 const wSessionID, CPNS::DeviceID const &devID, CPNS::SectionID const &sectionID, CPNS::Endpoint const &targetEndpoint)=0
	Assign the specified source section to a target input. More...

virtual CPNS::Enums::Errors	SmartConnectTarget_Finished (CPNS::uint16 const wSessionID, CPNS::Enums::Errors const errCode)=0
	Close the SmartConnect session To be called from the SmartConnect target side. More...

virtual CPNS::uint32	GetInternalSnapshotDataSize ()=0
	Get the buffer size needed to store this device's internal snapshot data. More...

virtual CPNS::Enums::Errors	GetInternalSnapshotData (CPNS::byte *const pData, CPNS::uint32 const dwSize)=0
	Get internal snapshot data. More...

virtual CPNS::Enums::Errors	RestoreInternalSnapshotData (CPNS::byte const *const pData, CPNS::uint32 const dwSize)=0
	Restore internal snapshot data. More...

virtual CPNS::Enums::Errors	Reply_RequestCollectSnapshotData (CPNS::uint16 const wRequestID, CPNS::Enums::SnapshotBlockPriorities const priority, CPNS::uint32 const dwContextData, CPNS::uint16 const wBlockSize, CPNS::boolean const fLastBlock, void *const pBlockData)=0
	Reply to a snapshot data collect request Call this to terminate a IBaseLocalDevice_SnapshotNotificationHandler::OnBaseLocalDevice_RequestCollectSnapshotData call. More...

virtual CPNS::Enums::Errors	Reply_RequestRestoreSnapshotData (CPNS::uint16 const wRequestID, CPNS::Enums::Errors const returnCode, CPNS::uint32 const dwContextData)=0
	Reply to a snapshot data restore request Call this to terminate a IBaseLocalDevice_SnapshotNotificationHandler::OnBaseLocalDevice_RequestRestoreSnapshotData call. More...

virtual CPNS::Enums::Errors	Reply_InvalidRequest (CPNS::uint16 const wRequestID)=0
	Invalid Request Call this to terminate a Request if no valid return can be done. More...

Public Member Functions inherited from CPNS::IObject
virtual CPNS::ICHAI *	GetCHAI ()=0
	Get a pointer to the CHAI hosting this object. More...

virtual void	RegisterObjectNotificationHandler (CPNS::IObject_NotificationHandler *const pHandler)=0
	Register an Object's notification handler. More...

virtual void	UnregisterObjectNotificationHandler (CPNS::IObject_NotificationHandler *const pHandler)=0
	Unregister an Object's notification handler. More...

virtual CPNS::Enums::ObjectTypes	GetObjectType () const =0
	Get the object type. More...

virtual CPNS::uint32	GetHandle () const =0
	Get a unique handle to the object if this object is handled by the trashcan. More...

virtual void	SetUserDataPtr (void const *const pData)=0
	Set a custom user ptr data. More...

virtual void *	GetUserDataPtr () const =0
	Get custom user ptr data. More...

virtual void	SetUserDataUInt32 (const CPNS::uint32 dwData)=0
	Set a custom user uint32 data. More...

virtual CPNS::uint32	GetUserDataUInt32 () const =0
	Get custom user uint32 data. More...

Detailed Description

It is the base interface for all Local Devices.

A Local Device is an object representing a device handled by the current application, in opposition to a Remote Device related to a device located anywhere on the network.

Member Function Documentation

virtual CPNS::IController* CPNS::IBaseLocalDevice::AddController	(	CPNS::char8 const *const	utf8Name,
		CPNS::CombinedControllerTypes const	types,
		CPNS::Enums::MessageTypes const	preferredMsgType,
		CPNS::uint16 const	wPreferredMsgNum,
		CPNS::uint16 const	wGroup,
		CPNS::SectionID const &	sectionID
	)

pure virtual

Add a controller.

Note: Don't forget to set the CPNS::Enums::IOC_Explorable capability to the owner output in order to allow controllers exploration and remote control.

Parameters

[in]	utf8Name	controller's name
[in]	types	combination of flags determining the controller's type.

Warning: The type argument is a combination of CPNS::Enums::ControllerTypes values, including the CPNS::Enums::CT_MsgMod, CPNS::Enums::CT_MsgSel or CPNS::Enums::CT_MsgText values. These are useful to describe the ability of this controller to send natively these kind of messages. These flags are used by SmartConnect to determine the best matching between controllers and parameters, or during the Learning process in order to accept only binding with a compatible Parameter.

Parameters

[in]	preferredMsgType	the preferred message type for the control (if any, can be CPNS::Enums::MT_None)
[in]	wPreferredMsgNum	the preferred message number for the control (if any)
[in]	wGroup	controller's group. Controllers having the same group number (>0) are physically attached.
[in]	sectionID	the related section ID. If empty, it is automatically set to {type CPNS::Enums::SECT_Multipurpose, instance 0}. If it is not empty, the SectionType part must not be a wildcard value. If the instance part is 0xFFFF (wildcard), it is automatically assigned to the next free instance number for the specified section type.

Returns: Pointer to the new controller, or NULL in case of error due to not enough memory

Remarks: the returned pointer is related to an object handled by the CHAI; do not delete it!

Warning: Several outputs can share the same section and so have the same Section ID.

virtual CPNS::IInput* CPNS::IBaseLocalDevice::AddInput	(	CPNS::CombinedInOutCapabilities const	inCaps,
		CPNS::char8 const *const	utf8Name,
		CPNS::SectionID const &	sectionID
	)

pure virtual

Add an Input.

The new Input's ID is the ordinal number in the collection of Inputs.

Parameters

[in]	inCaps	the combined Input capabilities. Usually used to give information about the kinds of message handled by this Input. If the Input is aimed to host parameters, the input capabilities
[in]	utf8Name	the name
[in]	sectionID	the related section ID. If empty, it is automatically transformed in a valid sectionID having the CPNS::Enums::SECT_Other type. If it is not empty, the SectionType part must not be a wildcard value. If the instance part is 0xFFFF (wildcard), it is automatically assigned with a unique value.

Returns: a pointer to the new Input object, or NULL if the Input can't be added due to a bas SectionType, a sectionID already used or memory limitation.

Remarks: the returned pointer is related to an object handled by the CHAI; do not delete it!

Warning: The Section ID must be unique for the input within the related local device.

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::AddOutput	(	CPNS::CombinedInOutCapabilities const	outCaps,
		CPNS::char8 const *const	utf8Name,
		CPNS::SectionID const &	sectionID
	)

pure virtual

Add an Output.

The new Output's ID is the ordinal number in the collection of Outputs.

Parameters

[in]	outCaps	the combined Output capabilities. Usually used to give information about the kinds of message issued by this output. However in case of using this output with controllers, the supported message types capability flags are automatically added depending on the declared controller types.
[in]	utf8Name	the name
[in]	sectionID	the related section ID. If the instance part is 0xFFFF (wildcard), it is automatically

Returns: a pointer to the new output object, or NULL if the output can't be added.

Remarks: the returned pointer is related to an object handled by the CHAI; do not delete it!

Warning: Several outputs can share the same section and so have the same Section ID.

virtual CPNS::IPipe* CPNS::IBaseLocalDevice::AddPipe ( CPNS::boolean const fSynapse )

pure virtual

Add an Pipe.

The new Pipe's ID is the ordinal number in the collection of Pipes going down from 0xFFFE

Parameters

[in] fSynapse TRUE if the pipe is a Synapse. A Synapse automatically forward incoming message to all connected pipes, except the source of the message.

Returns: a pointer to the new Pipe object, or NULL if the Pipe can't be added.

Remarks: the returned pointer is related to an object handled by the CHAI; do not delete it!

virtual CPNS::ICP2MIDILocalDevice* CPNS::IBaseLocalDevice::AddSubCP2MIDILocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic CopperLan to MIDI sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::IHybridMIDILocalDevice* CPNS::IBaseLocalDevice::AddSubHybridMIDILocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic hybrid MIDI sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::ILocalDevice* CPNS::IBaseLocalDevice::AddSubLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::IMIDI2CPLocalDevice* CPNS::IBaseLocalDevice::AddSubMIDI2CPLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic MIDI to CopperLan sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::ISharedDisplayClientLocalDevice* CPNS::IBaseLocalDevice::AddSubSharedDisplayClientLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic shared display client sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::ISharedDisplayLocalDevice* CPNS::IBaseLocalDevice::AddSubSharedDisplayLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::boolean const	fHidden,
		CPNS::CombinedExtendedDeviceCapabilities const	extDevCaps,
		CPNS::char8 const *const	utf8ModelName
	)

pure virtual

Add a generic shared display server sub-device A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0.

Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	fHidden	TRUE if the device should be hidden
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8ModelName	sub-device's Model name, or NULL to keep root's name.

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

virtual CPNS::IVMIDILinkHybridLocalDevice* CPNS::IBaseLocalDevice::AddSubVMIDILinkHybridLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::char8 const *const	utf8PortName
	)

pure virtual

Add a VMIDILink Hybrid sub-device This kind of Local Device is acting as a local input/output port, aimed to receive and send messages from/to a pair of MIDI Out/In ports automatically created on remote computers.

A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	extDevCaps	sub-device's extended capabilities
[in]	utf8PortName	The port name

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory, or invalid devcaps

Warning: VMIDILink devices are automatically flagged as hidden

virtual CPNS::IVMIDILinkInLocalDevice* CPNS::IBaseLocalDevice::AddSubVMIDILinkInLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::char8 const *const	utf8PortName
	)

pure virtual

Add a VMIDILink In sub-device This kind of Local Device is acting as a local input port, aimed to receive messages from a MIDI Out port automatically created on remote computers.

A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	utf8PortName	The port name

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory

Warning: VMIDILink devices are automatically flagged as hidden

virtual CPNS::IVMIDILinkOutLocalDevice* CPNS::IBaseLocalDevice::AddSubVMIDILinkOutLocalDevice	(	CPNS::uint16 const	wModuleID,
		CPNS::char8 const *const	utf8PortName
	)

pure virtual

Add a VMIDILink Out sub-device.

This kind of Local Device is acting as a local output port, aimed to send messages to a MIDI In port automatically created on remote computers. A sub-device get the same identity (BrandID and ModelID) than its root, but it has a unique ModuleID that must be <>0. Brand name and Model name can be customized if needed.

Parameters

[in]	wModuleID	A unique non-zero ModuleID identifying the sub-device.
[in]	utf8PortName	The port name

Returns: Pointer to the new local device, or NULL in case of error due to not enough memory

Warning: VMIDILink devices are automatically flagged as hidden

virtual void CPNS::IBaseLocalDevice::ClearControllers ( )

pure virtual

Remove all controllers.

virtual void CPNS::IBaseLocalDevice::ClearInputs ( )

pure virtual

Remove all inputs and associated data (parameter definition)

virtual void CPNS::IBaseLocalDevice::ClearOutputs ( )

pure virtual

Remove all outputs and associated data (controller definition)

virtual void CPNS::IBaseLocalDevice::ClearPipes ( )

pure virtual

Remove all pipes.

virtual CPNS::IController* CPNS::IBaseLocalDevice::FindFirstController ( )

pure virtual

Get the first Controller.

Remarks: this method exist for similarity with Remote Device Controller enumeration.

Returns: the pointer to the first Controller, or NULL if no Controller

virtual CPNS::IInput* CPNS::IBaseLocalDevice::FindFirstInput ( )

pure virtual

Get the first Input.

Remarks: this method exist for similarity with Remote Device Input enumeration.

Returns: the pointer to the first Input, or NULL if no Input

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::FindFirstOutput ( )

pure virtual

Get the first Output.

Remarks: this method exist for similarity with Remote Device Output enumeration.

Returns: the pointer to the first Output, or NULL if no Output

virtual CPNS::IPipe* CPNS::IBaseLocalDevice::FindFirstPipe ( )

pure virtual

Get the first Pipe.

Returns: the pointer to the first Pipe, or NULL if no Pipe

virtual CPNS::IController* CPNS::IBaseLocalDevice::FindLastController ( )

pure virtual

Get the last Controller.

Remarks: this method exist for similarity with Remote Device Controller enumeration.

Returns: the pointer to the first Controller, or NULL if no Controller

virtual CPNS::IInput* CPNS::IBaseLocalDevice::FindLastInput ( )

pure virtual

Get the last Input.

Remarks: this method exist for similarity with Remote Device Input enumeration.

Returns: the pointer to the first Input, or NULL if no Input

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::FindLastOutput ( )

pure virtual

Get the last Output.

Remarks: this method exist for similarity with Remote Device Output enumeration.

Returns: the pointer to the first Output, or NULL if no Output

virtual CPNS::IController* CPNS::IBaseLocalDevice::FindNextController ( CPNS::uint16 const wControllerID )

pure virtual

Get the next Controller.

Parameters

[in] wControllerID previous Controller ID

Remarks: this method exist for similarity with Remote Device Controller enumeration.

Returns: the pointer to the first Input, or NULL if no more Input

virtual CPNS::IInput* CPNS::IBaseLocalDevice::FindNextInput ( CPNS::uint16 const wInputID )

pure virtual

Get the next Input.

Parameters

[in] wInputID previous Input ID

Remarks: this method exist for similarity with Remote Device Input enumeration.

Returns: the pointer to the first Input, or NULL if no more Input

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::FindNextOutput ( CPNS::uint16 const wOutputID )

pure virtual

Get the next Output.

Parameters

[in] wOutputID previous Output ID

Remarks: this method exist for similarity with Remote Device Output enumeration.

Returns: the pointer to the first Output, or NULL if no more Output

virtual CPNS::IPipe* CPNS::IBaseLocalDevice::FindNextPipe ( CPNS::uint16 const wPipeID )

pure virtual

Get the next Pipe.

Parameters

[in] wPipeID previous Pipe ID

Returns: the pointer to the first Pipe, or NULL if no more Pipe

virtual CPNS::IController* CPNS::IBaseLocalDevice::FindPrevController ( CPNS::uint16 const wControllerID )

pure virtual

Get the prev Controller.

Parameters

[in] wControllerID previous Controller ID

Remarks: this method exist for similarity with Remote Device Controller enumeration.

Returns: the pointer to the first Controller, or NULL if no more Controller

virtual CPNS::IInput* CPNS::IBaseLocalDevice::FindPrevInput ( CPNS::uint16 const wInputID )

pure virtual

Get the prev Input.

Parameters

[in] wInputID previous Input ID

Remarks: this method exist for similarity with Remote Device Input enumeration.

Returns: the pointer to the first Input, or NULL if no more Input

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::FindPrevOutput ( CPNS::uint16 const wOutputID )

pure virtual

Get the prev Output.

Parameters

[in] wOutputID previous Output ID

Remarks: this method exist for similarity with Remote Device Output enumeration.

Returns: the pointer to the first Output, or NULL if no more Output

virtual void CPNS::IBaseLocalDevice::FlowControl ( CPNS::boolean const fSuspend )

pure virtual

This can be used to notify connected Output that they should suspend or resume sending.

This is overriding the automatic flow control behavior. This method is offering the same functionality as CPNS::ICHAI::FlowControl.

Parameters

[in] fSuspend TRUE if the connected Outputs should suspend sending

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Flush ( )

pure virtual

Flush all outputs.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_NoDestination | CPNS::Enums::ERR_Failed | CPNS::Enums::ERR_NotReadyToSend

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetBrandName ( )

pure virtual

Get the Brand name.

Returns: the brand name

virtual CPNS::IController* CPNS::IBaseLocalDevice::GetControllerFromID ( CPNS::uint16 const wControllerID )

pure virtual

Get the specified Controller.

Parameters

[in] wControllerID requested Controller ID

Returns: the pointer to the Controller or NULL if no Controller with the specified ID

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetCustomName ( )

pure virtual

Get the Custom name.

Returns: the current custom name

virtual CPNS::CombinedDeviceCapabilities CPNS::IBaseLocalDevice::GetDeviceCapabilities ( )

pure virtual

Get the consolidated capabilities of the device and its children.

Returns: combined value of CPNS::Enums::DeviceCapabilities

virtual CPNS::DeviceID CPNS::IBaseLocalDevice::GetDeviceID ( ) const

pure virtual

Get the DeviceID.

Returns: the device ID

virtual CPNS::Enums::DuplicateModes CPNS::IBaseLocalDevice::GetDuplicateMode ( ) const

pure virtual

Get the duplicate mode.

Returns: the duplicate mode

virtual CPNS::CombinedExtendedDeviceCapabilities CPNS::IBaseLocalDevice::GetExtendedDevCaps ( ) const

pure virtual

Get the extended caps.

Returns: a combination of extended dev caps.

virtual CPNS::CombinedExtendedDeviceCapabilities CPNS::IBaseLocalDevice::GetExtendedDeviceCapabilities ( )

pure virtual

Get the extended device capabilities.

Returns: combined value of CPNS::Enums::ExtendedDeviceCapabilities

virtual CPNS::IBaseLocalDevice* CPNS::IBaseLocalDevice::GetFirstSubDevice ( )

pure virtual

Get the first sub-device.

Returns: A pointer to the first sub-device

virtual CPNS::IAudioLanLocalDevice* CPNS::IBaseLocalDevice::GetIAudioLanLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IAudioLanLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IAudioLanLocalDevice interface if available

virtual CPNS::ICP2MIDILocalDevice* CPNS::IBaseLocalDevice::GetICP2MIDILocalDevice ( ) const

pure virtual

Check LocalDevice type and return an ICP2MIDILocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::ICP2MIDILocalDevice interface if available

virtual CPNS::IHybridMIDILocalDevice* CPNS::IBaseLocalDevice::GetIHybridMIDILocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IHybridMIDILocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IHybridMIDILocalDevice interface if available

virtual CPNS::ILocalDevice* CPNS::IBaseLocalDevice::GetILocalDevice ( ) const

pure virtual

Check LocalDevice type and return an ILocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::ILocalDevice interface if available

virtual CPNS::IMIDI2CPLocalDevice* CPNS::IBaseLocalDevice::GetIMIDI2CPLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IMIDI2CPLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IMIDI2CPLocalDevice interface if available

virtual CPNS::CombinedInOutCapabilities CPNS::IBaseLocalDevice::GetInputCapabilities ( )

pure virtual

Get the consolidated Input capabilities of the device and its children.

Returns: combined value of CPNS::Enums::InOutCapabilities

virtual CPNS::IInput* CPNS::IBaseLocalDevice::GetInputFromID ( CPNS::uint16 const wInputID )

pure virtual

Get the specified Input.

Parameters

[in] wInputID requested Input ID

Returns: the pointer to the Input or NULL if no Input with the specified ID

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::GetInternalSnapshotData	(	CPNS::byte *const	pData,
		CPNS::uint32 const	dwSize
	)

pure virtual

Get internal snapshot data.

This buffer contains destination related to visible and not locked Outputs. The expected buffer size can be determined using GetInternalSnapshotDataSize().

Parameters

[in]	pData	the buffer receiving a copy of the internal snapshot data.
[in]	dwSize	the buffer size.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BufferTooSmall | CPNS::Enums::ERR_NotSupported

virtual CPNS::uint32 CPNS::IBaseLocalDevice::GetInternalSnapshotDataSize ( )

pure virtual

Get the buffer size needed to store this device's internal snapshot data.

This buffer contains destination related to visible and not locked Outputs.

Returns: the buffer size

virtual CPNS::ISharedDisplayClientLocalDevice* CPNS::IBaseLocalDevice::GetISharedDisplayClientLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an ISharedDisplayClientLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::ISharedDisplayClientLocalDevice interface if available

virtual CPNS::ISharedDisplayLocalDevice* CPNS::IBaseLocalDevice::GetISharedDisplayLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an ISharedDisplayLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::ISharedDisplayLocalDevice interface if available

virtual CPNS::IVMIDILinkHybridLocalDevice* CPNS::IBaseLocalDevice::GetIVMIDILinkHybridLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IHybridVMIDILinkLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IHybridVMIDILinkLocalDevice interface if available

virtual CPNS::IVMIDILinkInLocalDevice* CPNS::IBaseLocalDevice::GetIVMIDILinkInLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IInVMIDILinkLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IInVMIDILinkLocalDevice interface if available

virtual CPNS::IVMIDILinkOutLocalDevice* CPNS::IBaseLocalDevice::GetIVMIDILinkOutLocalDevice ( ) const

pure virtual

Check LocalDevice type and return an IOutVMIDILinkLocalDevice object pointer if type match.

Returns: a pointer to the object's CPNS::IOutVMIDILinkLocalDevice interface if available

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetModelName ( )

pure virtual

Get the Model name.

Returns: the model name

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetName ( CPNS::Enums::DeviceNameFormats const format )

pure virtual

Get the specified name.

Parameters

[in] format the requested name type

Returns: the name string corresponding to the requested name format

virtual CPNS::IBaseLocalDevice* CPNS::IBaseLocalDevice::GetNextDevice ( )

pure virtual

Get next sibling device.

Returns: A pointer to the next device

virtual CPNS::uint16 CPNS::IBaseLocalDevice::GetNumControllers ( )

pure virtual

Get the number of Controller.

Returns: the number of Controller

virtual CPNS::uint16 CPNS::IBaseLocalDevice::GetNumInputs ( )

pure virtual

Get the number of Inputs.

Returns: the number of Inputs

virtual CPNS::uint16 CPNS::IBaseLocalDevice::GetNumOutputs ( )

pure virtual

Get the number of Outputs.

Returns: the number of Outputs

virtual CPNS::uint16 CPNS::IBaseLocalDevice::GetNumPipes ( )

pure virtual

Get the number of Pipes.

Returns: the number of Pipes

virtual CPNS::CombinedInOutCapabilities CPNS::IBaseLocalDevice::GetOutputCapabilities ( )

pure virtual

Get the consolidated Output capabilities of the device and its children.

Returns: combined value of CPNS::Enums::InOutCapabilities

virtual CPNS::IOutput* CPNS::IBaseLocalDevice::GetOutputFromID ( CPNS::uint16 const wOutputID )

pure virtual

Get the specified Output.

Parameters

[in] wOutputID requested Output ID

Returns: the pointer to the Output or NULL if no Output with the specified ID

virtual CPNS::CombinedDeviceCapabilities CPNS::IBaseLocalDevice::GetOwnDeviceCapabilities ( )

pure virtual

Get the device capabilities.

Returns: combined value of CPNS::Enums::DeviceCapabilities

virtual CPNS::CombinedInOutCapabilities CPNS::IBaseLocalDevice::GetOwnInputCapabilities ( )

pure virtual

Get the Input capabilities.

Returns: combined value of CPNS::Enums::InOutCapabilities

virtual CPNS::CombinedInOutCapabilities CPNS::IBaseLocalDevice::GetOwnOutputCapabilities ( )

pure virtual

Get the Output capabilities.

Returns: combined value of CPNS::Enums::InOutCapabilities

virtual CPNS::IBaseLocalDevice* CPNS::IBaseLocalDevice::GetParentDevice ( )

pure virtual

Get parent device.

Returns: A pointer to the parent device

virtual CPNS::DeviceID CPNS::IBaseLocalDevice::GetParentDeviceID ( ) const

pure virtual

Get the parent DeviceID.

Returns: the parent's device ID, or empty device ID in case of root device.

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetPath ( )

pure virtual

Get the path.

Returns: the path information (NOT terminated with a '/' !!!)

virtual CPNS::IPipe* CPNS::IBaseLocalDevice::GetPipeFromID ( CPNS::uint16 const wPipeID )

pure virtual

Get the specified Pipe.

Parameters

[in] wPipeID requested Pipe ID

Returns: the pointer to the first Pipe or NULL if no Pipe with the specified ID

virtual CPNS::UTF8String CPNS::IBaseLocalDevice::GetSectionName ( CPNS::SectionID const & sectionID )

pure virtual

Get the custom name for the specified section type.

Parameters

[in] sectionID The section ID

Returns: The name

virtual CPNS::boolean CPNS::IBaseLocalDevice::IsChildOf ( CPNS::IBaseLocalDevice *const pCheckDev )

pure virtual

Check if the local device is or is child of another one.

Returns: TRUE is the specified device is the current device or one of its parents.

virtual CPNS::boolean CPNS::IBaseLocalDevice::IsLearningModeActive ( )

pure virtual

Check if learning mode is active for one of this Device's Controllers.

Returns: TRUE if active

virtual void CPNS::IBaseLocalDevice::LeaveLearningMode ( )

pure virtual

Leave learning mode if one of this Device's Controller is currently learning.

On success, the notification handler ICHAI_NotificationHandler::OnCHAI_Notification is called signaling CPNS::Enums::CNT_GlobalLearningModeLeaved

virtual void CPNS::IBaseLocalDevice::RegisterNotificationHandler ( CPNS::IBaseLocalDevice_NotificationHandler *const pHandler )

pure virtual

Register a Local Device notification handler.

The LocalDevice's notification handler is used to send information to the application, such as status or duplicate change...

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_NotificationHandler. If pHandler is NULL, clear all registered handlers.

virtual void CPNS::IBaseLocalDevice::RegisterSignalNotificationHandler ( CPNS::IBaseLocalDevice_SignalNotificationHandler *const pHandler )

pure virtual

Register a Signal reception notification handler.

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_SignalNotificationHandler Clear all registered handlers if pHandler is NULL.

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Reply_InvalidRequest ( CPNS::uint16 const wRequestID )

pure virtual

Invalid Request Call this to terminate a Request if no valid return can be done.

Parameters

[in] wRequestID the Request ID provided by the Request Notification Handler

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadRequestID | CPNS::Enums::ERR_InvalidCall

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Reply_RequestCollectSnapshotData	(	CPNS::uint16 const	wRequestID,
		CPNS::Enums::SnapshotBlockPriorities const	priority,
		CPNS::uint32 const	dwContextData,
		CPNS::uint16 const	wBlockSize,
		CPNS::boolean const	fLastBlock,
		void *const	pBlockData
	)

pure virtual

Reply to a snapshot data collect request Call this to terminate a IBaseLocalDevice_SnapshotNotificationHandler::OnBaseLocalDevice_RequestCollectSnapshotData call.

Parameters

[in]	wRequestID	the Request ID provided by the Request Notification Handler
[in]	priority	the restore priority for this type of data block. Must be the same for the whole data related to the requested type.
[in]	dwContextData	Context data related to the collected device, to be send back during next block collect. Can be used by the application as a session handling data sent back by during the request for next block.
[in]	wBlockSize	Block size. Must be <= notification handler's wMaxBlockSize argument.
[in]	fLastBlock	TRUE if it is the last block
[in]	pBlockData	pointer to the data block.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadRequestID | CPNS::Enums::ERR_InvalidCall

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Reply_RequestRestoreSnapshotData	(	CPNS::uint16 const	wRequestID,
		CPNS::Enums::Errors const	returnCode,
		CPNS::uint32 const	dwContextData
	)

pure virtual

Reply to a snapshot data restore request Call this to terminate a IBaseLocalDevice_SnapshotNotificationHandler::OnBaseLocalDevice_RequestRestoreSnapshotData call.

Parameters

[in]	wRequestID	the Request ID provided by the Request Notification Handler
[in]	returnCode	return code to be transmitted to the remote device
[in]	dwContextData	Context data related to the collected device, to be send back during next block collect. Can be used by the application as a session handling data sent back by during the request for next block.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadRequestID | CPNS::Enums::ERR_InvalidCall

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::RestoreInternalSnapshotData	(	CPNS::byte const *const	pData,
		CPNS::uint32 const	dwSize
	)

pure virtual

Restore internal snapshot data.

This is restoring the connections described into the buffer.

Parameters

[in]	pData	the buffer receiving a copy of the internal snapshot data.
[in]	dwSize	the buffer size.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_InvalidLength | CPNS::Enums::ERR_BadVersion | CPNS::Enums::ERR_InvalidOutputID | CPNS::Enums::ERR_InvalidType | CPNS::Enums::ERR_NotSupported

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SetCustomName ( CPNS::char8 const *const utf8CustomName )

pure virtual

Set the Custom name If not empty, the custom name override the default name.

Parameters

[in] utf8CustomName the new custom name, or NULL to remove custom name.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_InvalidName

Remarks: Using this method in connected mode implies usage of ICHAI::RedeclareAllDevices()

virtual void CPNS::IBaseLocalDevice::SetDisabledDestinationAutoDelete ( CPNS::boolean const fAutoDelete )

pure virtual

Enable/disable the automatic deletion of disabled destination after 60 seconds.

Default status is OFF.

Parameters

[in] fAutoDelete if TRUE, lost destinations are automatically deleted after 60 seconds

virtual void CPNS::IBaseLocalDevice::SetDisabledInternalSnapshot	(	CPNS::boolean const	fDisabled,
		CPNS::boolean const	fAlsoForChildren
	)

pure virtual

Enable/disable the internal snapshot capability for this device and optionally its descendants By default it is enabled for device hosting outputs, for outputs hosting controllers, and for inputs hosting parameters.

Parameters

[in]	fDisabled	If TRUE, the internal snapshot is disabled for this device. Use default behavior if FALSE.
[in]	fAlsoForChildren	set this status along the children tree.

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SetExtendeddDevCaps ( CPNS::CombinedExtendedDeviceCapabilities const xDevCaps )

pure virtual

Set the device's extended caps.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_NotSupported

Remarks: Using this method in connected mode implies usage of ICHAI::RedeclareAllDevices()

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SetNumericProperty	(	CPNS::uint16 const	wPropertyNum,
		CPNS::uint64 const	qwValue
	)

pure virtual

Set a numeric device property.

Parameters

[in]	wPropertyNum	the property number. See CPNS::Enums::DeviceProperties.
[in]	qwValue	the property value

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_NotEnoughMemory

virtual void CPNS::IBaseLocalDevice::SetSectionName	(	CPNS::SectionID const &	sectionID,
		CPNS::char8 const *const	utf8Name
	)

pure virtual

Set a custom name for the specified section.

Parameters

[in]	sectionID	The section ID
[in]	utf8Name	The name

Remarks: It is possible to set a name for any instance related to a section type passing a sectionID argument having its m_wInstance member at 0xFFFF

virtual void CPNS::IBaseLocalDevice::SetSmartConnectTargetNotificationHandler ( CPNS::IBaseLocalDevice_SmartConnectTargetNotificationHandler *const pHandler )

pure virtual

Set a Local Device notification handler for Smart Connect, Target side.

This notification handler is used to query information about parameters. Only one SmartConnect Target notification handler can be set for a Device!

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_SmartConnectTargetNotificationHandler. If pHandler is NULL, clear all registered handlers.

Remarks: Automatically set the DC_SmartConnectTarget device capability.

virtual void CPNS::IBaseLocalDevice::SetSnapshotNotificationHandler ( CPNS::IBaseLocalDevice_SnapshotNotificationHandler *const pHandler )

pure virtual

Set a Local Device Snapshot notification handler.

The LocalDevice's Snapshot notification handler is used to query/restore snapshot data. Only one Snapshot notification handler can be set for a Device!

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_SnapshotNotificationHandler. If pHandler is NULL, clear all registered handlers.

Remarks: Automatically set the DC_SupportSnapshot device capability.

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SetStringProperty	(	CPNS::uint16 const	wPropertyNum,
		CPNS::char8 const *const	utf8Value
	)

pure virtual

Set a text device property.

Parameters

[in]	wPropertyNum	the property number. See CPNS::Enums::DeviceProperties.
[in]	utf8Value	the property value

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_NotEnoughMemory

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SetVisibility ( CPNS::boolean const fHidden )

pure virtual

Change device visibility.

Parameters

[in] fHidden TRUE if the device should be hidden

Returns: CPNS::Enums::ERR_None

Remarks: Using this method in connected mode implies usage of ICHAI::RedeclareAllDevices()

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Signal_Broadcast	(	CPNS::uint16 const	wSignalNumber,
		CPNS::uint16 const	wOptionalData0,
		CPNS::uint16 const	wOptionalData1,
		CPNS::uint16 const	wOptionalData2,
		CPNS::uint16 const	wOptionalData3,
		CPNS::char8 const *const	utf8OptionalData,
		CPNS::Endpoint const &	optionalEndpoint
	)

pure virtual

Send a broadcast signal to all devices.

Remarks: This method send broadcast signals. So the signal number MUST have SIGB_Broadcast bit set

Parameters

[in]	wSignalNumber	Standard Signal numbers are available from CPNS::Enums::Signals
[in]	wOptionalData0	Optional value, depending on the signal number
[in]	wOptionalData1	Optional value, depending on the signal number
[in]	wOptionalData2	Optional value, depending on the signal number
[in]	wOptionalData3	Optional value, depending on the signal number
[in]	utf8OptionalData	Optional value, depending on the signal number
[in]	optionalEndpoint	Optional value, depending on the signal number

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSignalType | CPNS::Enums::ERR_NoDestination | CPNS::Enums::ERR_TooManyDestinations | CPNS::Enums::ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::Signal_Direct	(	CPNS::DeviceID const &	devID,
		CPNS::uint16 const	wSignalNumber,
		CPNS::uint16 const	wOptionalData0,
		CPNS::uint16 const	wOptionalData1,
		CPNS::uint16 const	wOptionalData2,
		CPNS::uint16 const	wOptionalData3,
		CPNS::char8 const *const	utf8OptionalData,
		CPNS::Endpoint const &	optionalEndpoint
	)

pure virtual

Send a directed signal to the specified device.

Remarks: This method send directed signals. So the signal number MUST have SIGB_Directed bit set

Parameters

[in]	devID	Target Device ID
[in]	wSignalNumber	Standard Signal numbers are available from CPNS::Enums::Signals
[in]	wOptionalData0	Optional value, depending on the signal number
[in]	wOptionalData1	Optional value, depending on the signal number
[in]	wOptionalData2	Optional value, depending on the signal number
[in]	wOptionalData3	Optional value, depending on the signal number
[in]	utf8OptionalData	Optional value, depending on the signal number
[in]	optionalEndpoint	Optional value, depending on the signal number

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSignalType | CPNS::Enums::ERR_NoDestination | CPNS::Enums::ERR_TooManyDestinations | CPNS::Enums::ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SmartConnectTarget_AssignController	(	CPNS::uint16 const	wSessionID,
		CPNS::DeviceID const &	devID,
		CPNS::uint16 const	wControllerID,
		CPNS::ControllerAssignment const &	assignment
	)

pure virtual

Assign the specified controller to a target parameter.

To be called from the SmartConnect target state engine.

Parameters

[in]	wSessionID	the SmartConnect session ID
[in]	devID	the device hosting the controller. The DevID must be compliant with the section hosting the controller. (see CPNS::SmartConnectSectionItem).
[in]	wControllerID	the controller ID
[in]	assignment	the new assignment

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSessionID | ERR_OutOfRange | ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SmartConnectTarget_AssignOutput	(	CPNS::uint16 const	wSessionID,
		CPNS::DeviceID const &	devID,
		CPNS::SectionID const &	sectionID,
		CPNS::Endpoint const &	targetEndpoint
	)

pure virtual

Assign the specified source section to a target input.

To be called from the SmartConnect target state engine.

Parameters

[in]	wSessionID	the SmartConnect session ID
[in]	devID	the device hosting the output. The DevID must be compliant with the requested section. (see CPNS::SmartConnectSectionItem).
[in]	sectionID	the section ID identifying the output to be connected.
[in]	targetEndpoint	the target endpoint

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSessionID | ERR_OutOfRange | ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SmartConnectTarget_Finished	(	CPNS::uint16 const	wSessionID,
		CPNS::Enums::Errors const	errCode
	)

pure virtual

Close the SmartConnect session To be called from the SmartConnect target side.

Parameters

[in]	wSessionID	the SmartConnect session ID
[in]	errCode	error code to be notified to the SmartConnect initiator.

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSessionID | ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SmartConnectTarget_RequestControllerList	(	CPNS::uint16 const	wSessionID,
		CPNS::DeviceID const &	devID,
		CPNS::SectionID const &	sectionID
	)

pure virtual

Query the SmartConnect source side to reply the controller list related to the specified section instance.

To be called from the SmartConnect target state engine.

Parameters

[in]	wSessionID	the SmartConnect session ID
[in]	devID	the queried source. The DevID must be compliant with the requested section. (see CPNS::SmartConnectSectionItem).
[in]	sectionID	the section ID

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSessionID | ERR_OutOfRange | ERR_Failed

virtual CPNS::Enums::Errors CPNS::IBaseLocalDevice::SmartConnectTarget_UnassignAndRequestSectionList	(	CPNS::uint16 const	wSessionID,
		CPNS::DeviceID const &	devID
	)

pure virtual

Query the SmartConnect source side to clear its controller assignments and to reply the consolidated section list.

To be called from the SmartConnect target state engine.

Parameters

[in]	wSessionID	the SmartConnect session ID
[in]	devID	the queried source. The DevID must be compliant with the source device list provided by CPNS::OnBaseLocalDevice_SmartConnectTarget_Started

Returns: CPNS::Enums::ERR_None | CPNS::Enums::ERR_BadSessionID | ERR_OutOfRange | ERR_Failed

virtual void CPNS::IBaseLocalDevice::UnassignAllControllers ( CPNS::boolean const fAlsoForChildren )

pure virtual

Unassign all controllers and clear connections for all related Outputs.

Parameters

[in] fAlsoForChildren process also the children sub-devices if TRUE

virtual void CPNS::IBaseLocalDevice::UnregisterNotificationHandler ( CPNS::IBaseLocalDevice_NotificationHandler *const pHandler )

pure virtual

Unregister a Local Device notification handler.

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_NotificationHandler. If pHandler is NULL, clear all registered handlers.

virtual void CPNS::IBaseLocalDevice::UnregisterSignalNotificationHandler ( CPNS::IBaseLocalDevice_SignalNotificationHandler *const pHandler )

pure virtual

Unregister a Signal reception notification handler.

Parameters

[in] pHandler Pointer to the application object implementing IBaseLocalDevice_SignalNotificationHandler Clear all registered handlers if pHandler is NULL.

Public Member Functions

Detailed Description

Member Function Documentation
